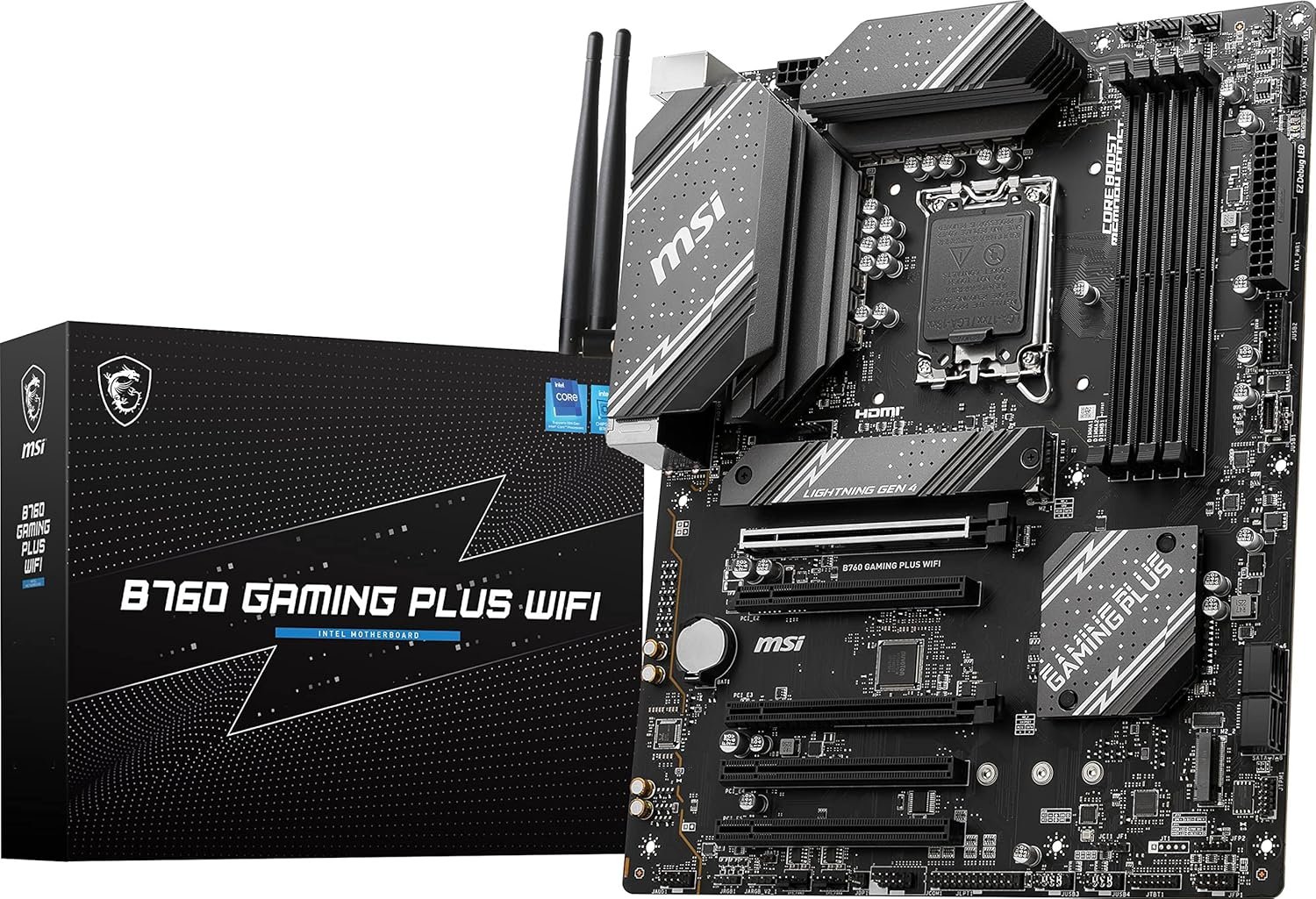

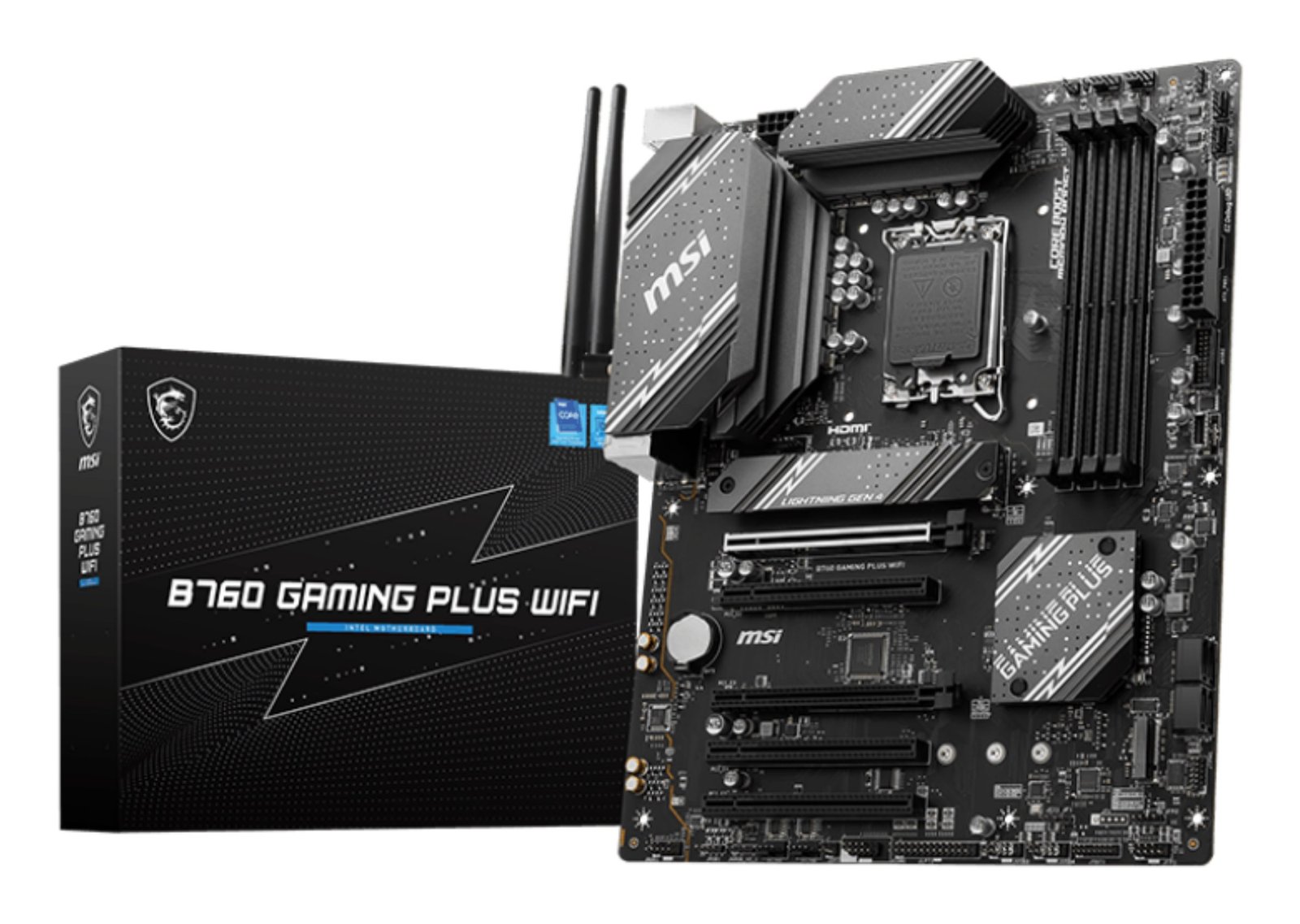

MSI B760 GAMING PLUS WIFI ATX LGA 1700 Motherboard
$179.99
ATX Form Factor
B760 Chipset
LGA 1700 Socket
4 x Dual-Channel DDR5 RAM Slots
4 x SATA III, 2 x M.2 PCIe
2 x PCIe 4.0 x16 & 3 x PCIe 3.0 x16
Wi-Fi 6E | 2.5 GbE | Bluetooth 5.3
USB 2.0, 3.2 Gen 1, Gen 2
7.1-Channel Audio Support
Windows 10 & Windows 11 Support
1 in stock
Key Specs
Chipset
Intel B760
CPU Socket
LGA 1700
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Storage Slots
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor
ATX
CPU
Chipset
Intel B760
CPU Socket
LGA 1700
Back Panel I/O
USB
4x USB-A (USB 2.0)
2x USB-A (USB 3.1/3.2 Gen 2)
1x USB-C (USB 3.1/3.2 Gen 2)
Thunderbolt
No
Display
1x DisplayPort 1.4 Output
1x HDMI 2.1 Output
Audio
5x 1/8″ / 3.5 mm
1x S/PDIF
Ethernet / Controller
1x Realtek 8125BG 2.5Gigabit
PS/2
1x PS/2
Wi-Fi Antenna
2x Connector
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MT/s
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x16 (x4 mode)
3x PCIe 3.0 x16 (x1 mode)
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU
5x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin ATX
1x 4-Pin ATX
Security
Chassis Intrusion, TPM Module
LED Header
7x RGB
Diagnostics
Clear CMOS
Add-On
1x Thunderbolt Header
Legacy
1x Parallel
1x Serial
Audio
Audio Codec
Realtek ALC897 (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth
5.3
Software
OS Compatibility
Windows 10 to 11 (64-Bit Only)
Physical
Form Factor
ATX
Dimensions
9.6 x 12″ / 24.4 x 30.5Â cm
| Weight | 5 lbs |
|---|---|
| Dimensions | 14.6 × 11.5 × 2.7 in |
| Brand | MSI |
