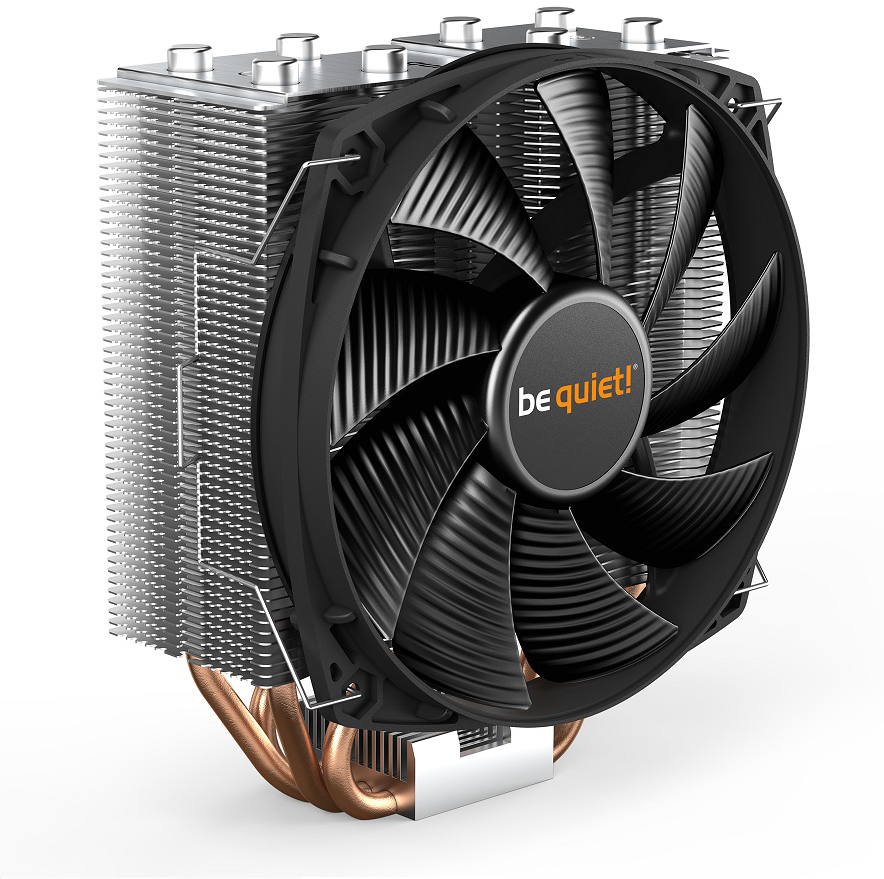

Be Quiet! Shadow Rock Slim 2

General data

Model
Shadow Rock Slim 2

TDP (W)
160

Color option
Silver

Overall dimensions without mounting material (L x W x H), (mm)
52 x 130 x 161

Total weight (kg)
0.69

Socket compatibility Intel
1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM

Socket compatibility AMD
AM5 / AM4

Overall noise level (dB(A)) @ 50/75/100% (rpm)
11.5 / 18.7 / 23.7

Number of fans
1

Lighting connector
–

Infographics

Heatsink specifications

Dimensions (L x W x H), (mm)
74 x 137 x 161

Fin material
Aluminum

Surface treatment
Brushed

Base material
Aluminum / Copper

CPU contact surface
Heat pipe direct touch

Heatpipe number / Diameter (mm)
4 / 6

Decoupled fan mounting
–

Fan specifications

Fan model
silence-optimized be quiet! fan

Fan dimensions (mm)
135 x 135 x 22

Speed @ 100% PWM (rpm)
1400

Airflow at 100% PWM / 12V (CFM / m3/h)
86.3 / 146.6

Air Pressure at 100% PWM / 12V (mm H2O)
2.30

Bearing technology
Rifle

Motor technology
4-pole fan motor

Rated Voltage (V)
12

Input current (A)
0.40

Safety current (A)
0.11

Input power (W)
1.3

Connector
4-pin PWM

Lighting connector
–

Cable length (mm)
220

Lifespan (h / 25°C)
80,000

Y-Cable
–

Accessories

Thermal grease (Type)
Included

Mounting set
Intel & AMD

Screwdriver
–

Y-Cable
–

User manual languages
CN, DE, EN, ES, FR, JP, PL, RU, TW
