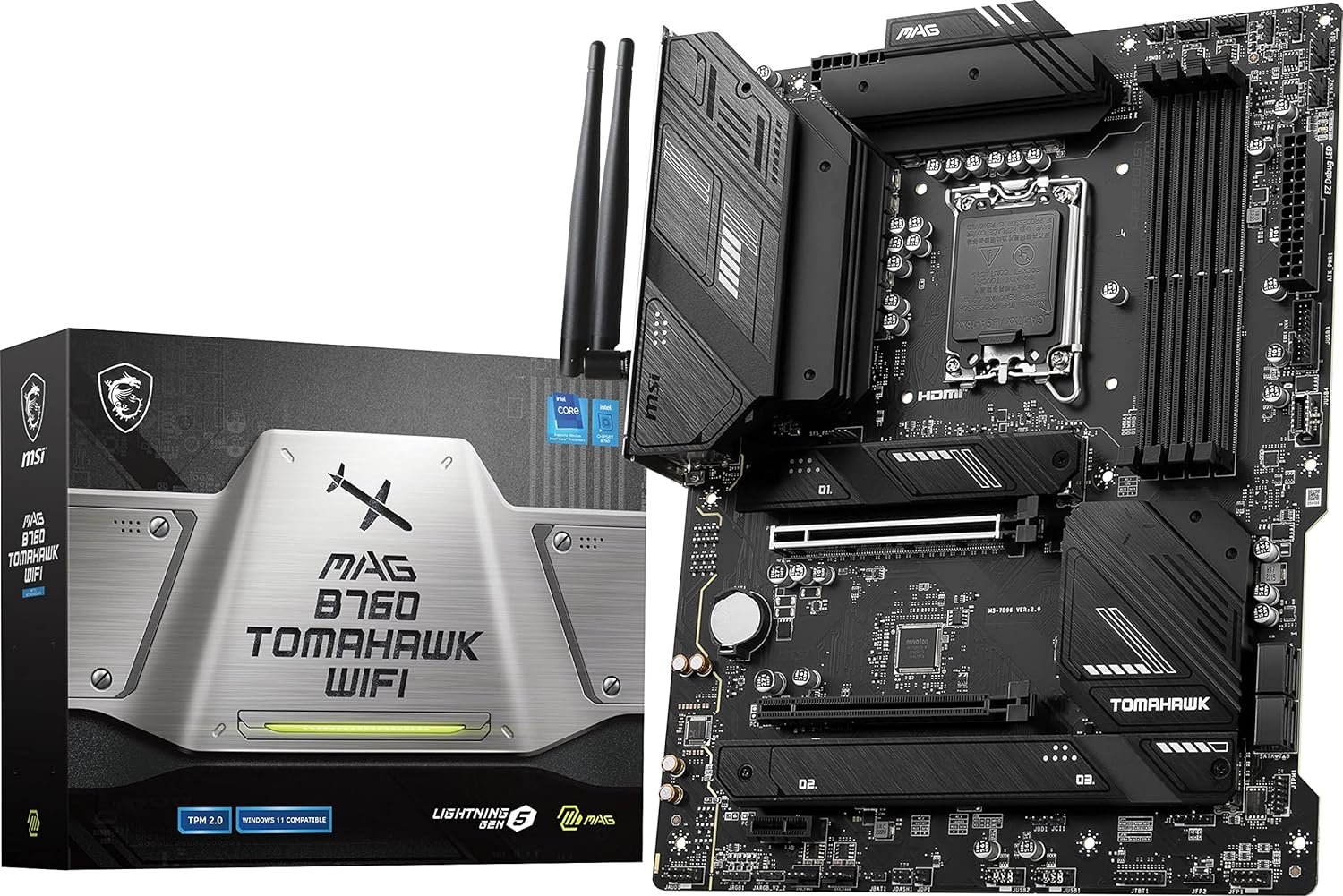

MSI MAG B760 Tomahawk WiFi Gaming Motherboard
$214.99
-
- Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7000+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
9 in stock
12
People watching this product now!
SKU:
MAGB760TOMAHAWKWIFI
Categories: Motherboards, PC Hardware & Components
Description
Key Specs
Chipset |
Intel B760
|
CPU Socket |
LGA 1700
|
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MT/s
|
Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x1 mode) 1x PCIe 3.0 x4 |
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
Form Factor |
ATX
|
CPU
Chipset |
Intel B760
|
CPU Socket |
LGA 1700
|
Back Panel I/O
USB |
4x USB-A (USB 2.0)
4x USB-A (USB 3.1/3.2 Gen 2) 1x USB-C (USB 3.2 Gen 2×2) |
Thunderbolt |
No
|
Display |
1x DisplayPort 1.4
1x HDMI 2.1 |
Audio |
5x 1/8″ / 3.5 mm
1x S/PDIF |
Ethernet / Controller |
1x 2.5Gigabit
|
Wi-Fi Antenna |
2x Connector
|
Memory
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MT/s
|
Maximum Capacity |
128 GB
|
Channel Architecture |
Dual Channel
|
ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
SATA |
4x SATA III
|
Storage Slots |
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
Internal I/O
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x1 mode) 1x PCIe 3.0 x4 |
USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
Air Cooling |
1x 4-Pin CPU
5x 4-Pin System |
Liquid Cooling |
1x 4-Pin Pump
|
Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin CPU |
Security |
Chassis Intrusion, TPM Header
|
LED Header |
4x RGB
|
Add-On |
1x Thunderbolt Header
|
Front Panel I/O
Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
Audio Codec |
Realtek ALC897 (7.1-Channel)
|
Wireless
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
Bluetooth |
5.3
|
Software
OS Compatibility |
Windows 10 to 11
|
Physical
Form Factor |
ATX
|
Dimensions |
9.60 x 12.0″ / 243.84 x 304.8Â mm
|
Additional information
Weight | 4 lbs |
---|---|
Dimensions | 12 × 9.6 × 2.5 in |
Brand |
MSI |
