Be Quiet! Light Wings 120mm Triple Pack

General data

Model
Light Wings 120mm PWM Triple Pack

Dimensions (mm)
120

Color option
Black

Lighting
ARGB LED

Fan speed at 100% PWM / 12V (rpm)
1700

Noise level at 100% PWM / 12V (dB(A))
20.6

Airflow at 100% PWM / 12V (CFM / m3/h)
41.51 / 70.53

Air Pressure at 100% PWM / 12V (mm H2O)
1.66

Mechanical specifications

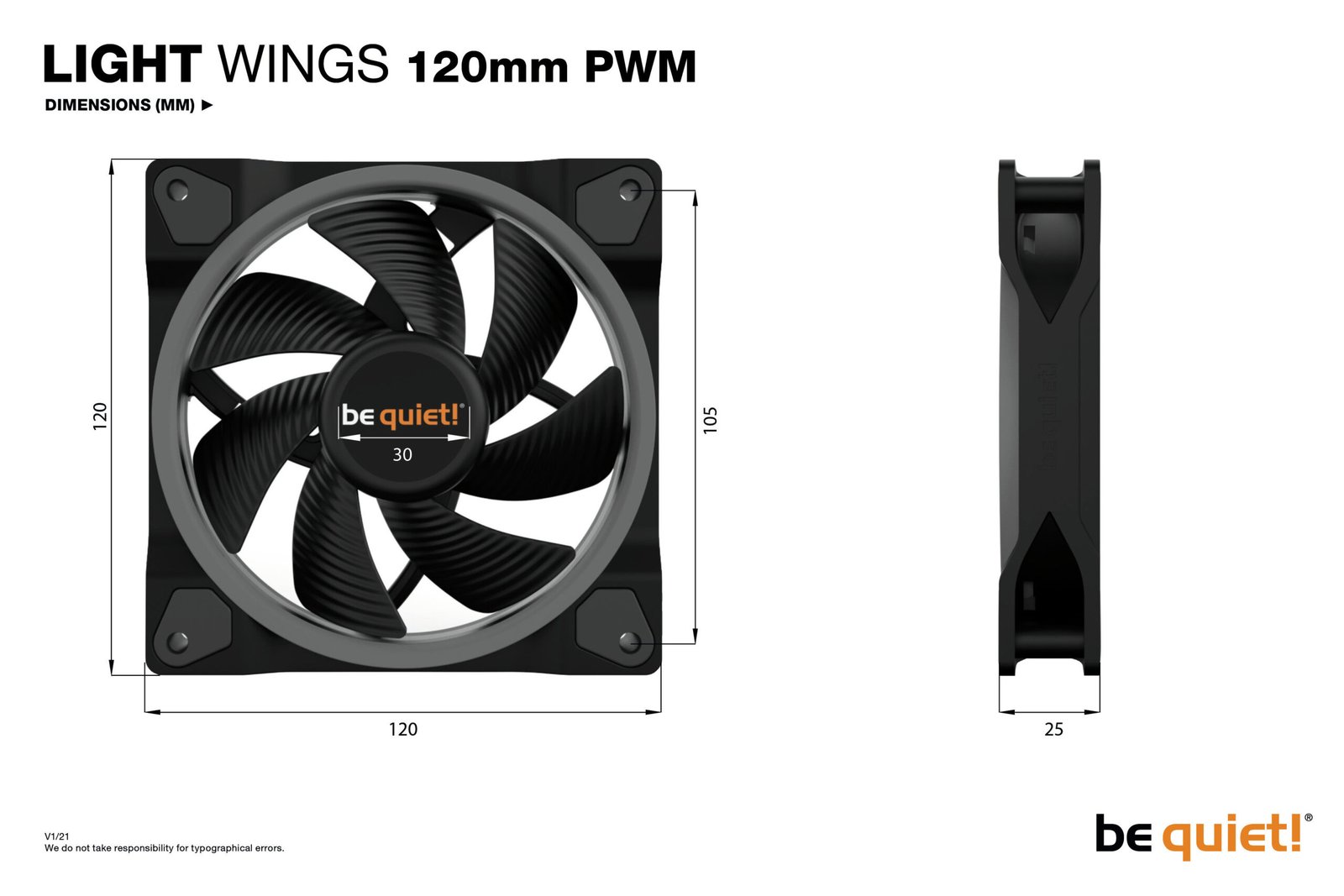

Dimensions (L x W x H), (mm)
120 x 25 x 120

Weight incl. fixed cables (g)
200

Bearing technology
Rifle

Motor technology
4-pole fan motor

Push pin fixing
–

Screw fixing
✓

Cables / Connectors

Daisy-chain compatible
✓

Lighting connector
5V 3-pin ARGB

Connector
4-pin PWM

Cable length (mm)
500

Cable sleeve
–

Performance / Noise

Airflow at 100% PWM / 12V (CFM / m3/h)
41.51 / 70.53

Air Pressure at 100% PWM / 12V (mm H2O)
1.66

Noise level at 100% PWM / 12V (dB(A))
20.6

Lifespan (h / 25°C)
60,000

Zero RPM mode
–

Electrical specifications

Rated Voltage DC (V)
12

Operating Voltage DC (V)
5 – 13.2

Input current (A)
0.07

Safety current (A)
0.38

Input power (W)
4.56

Rated Current LED (A)
0.6

Accessories

3-pin to 4-pin 12V-connector
–

12V to 7V adapter
–

12V to 5V adapter
–

Screws
16

Push pins
–

hard plastic washer
–

Others
ARGB Hub
