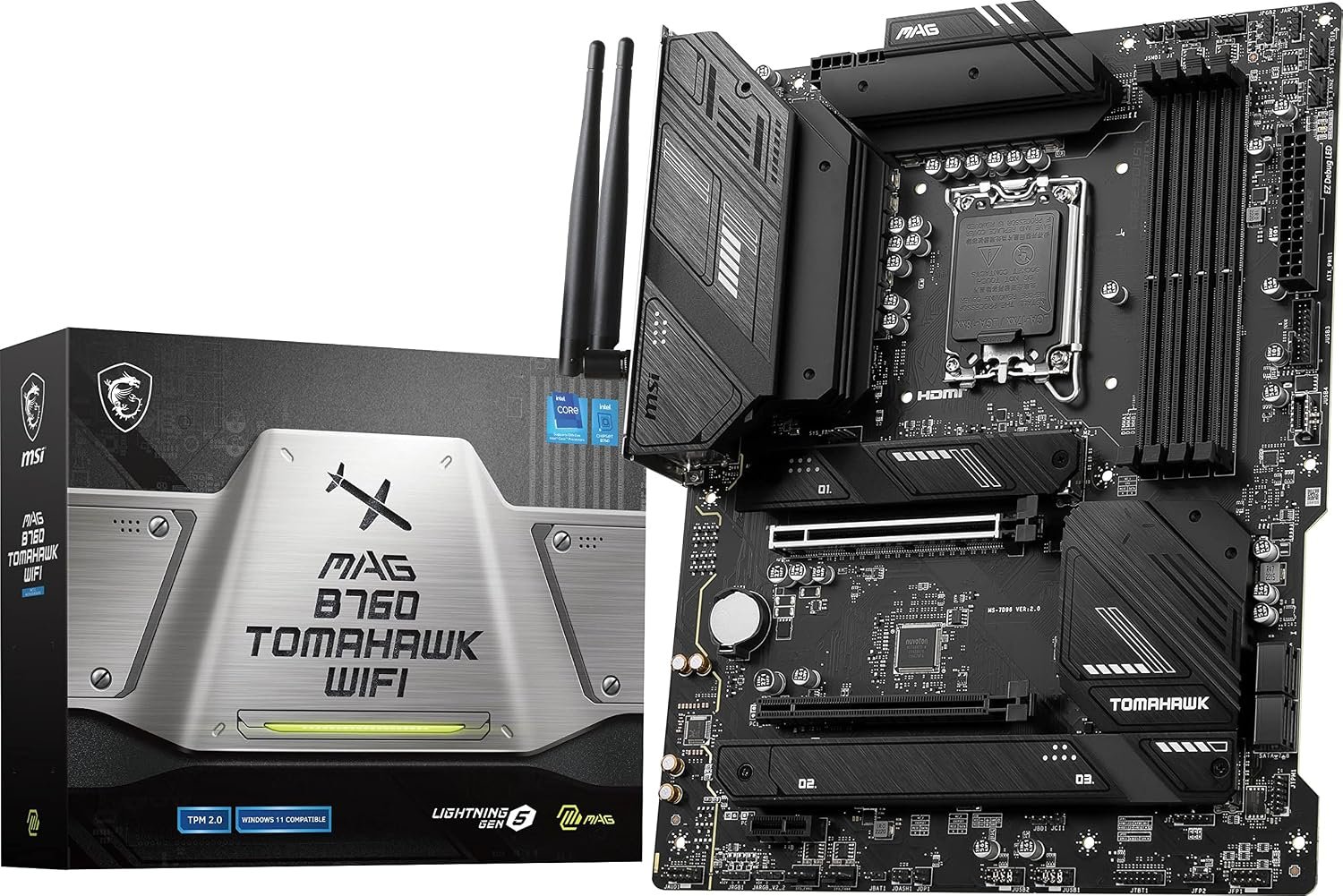

MSI MAG B760 Tomahawk WiFi Gaming Motherboard

Key Specs

Chipset

Intel B760

CPU Socket

LGA 1700

Memory Slots

4x 288-Pin

Memory Support

DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MT/s

Storage Slots

1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x1 mode)
1x PCIe 3.0 x4

Wi-Fi

Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support

Form Factor

ATX

CPU

Chipset

Intel B760

CPU Socket

LGA 1700

Back Panel I/O

USB

4x USB-A (USB 2.0)
4x USB-A (USB 3.1/3.2 Gen 2)
1x USB-C (USB 3.2 Gen 2×2)

Thunderbolt

No

Display

1x DisplayPort 1.4
1x HDMI 2.1

Audio

5x 1/8″ / 3.5 mm
1x S/PDIF

Ethernet / Controller

1x 2.5Gigabit

Wi-Fi Antenna

2x Connector

Memory

Memory Slots

4x 288-Pin

Memory Support

DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MT/s

Maximum Capacity

128 GB

Channel Architecture

Dual Channel

ECC Support

Non-ECC Unbuffered

Storage Expansion

SATA

4x SATA III

Storage Slots

1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)

RAID Support

RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x1 mode)
1x PCIe 3.0 x4

USB

1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)

Air Cooling

1x 4-Pin CPU
5x 4-Pin System

Liquid Cooling

1x 4-Pin Pump

Power Connectors

1x 24-Pin Mainboard
2x 8-Pin CPU

Security

Chassis Intrusion, TPM Header

LED Header

4x RGB

Add-On

1x Thunderbolt Header

Front Panel I/O

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek ALC897 (7.1-Channel)

Wireless

Wi-Fi

Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support

Bluetooth

5.3

Software

OS Compatibility

Windows 10 to 11

Physical

Form Factor

ATX

Dimensions

9.60 x 12.0″ / 243.84 x 304.8 mm
