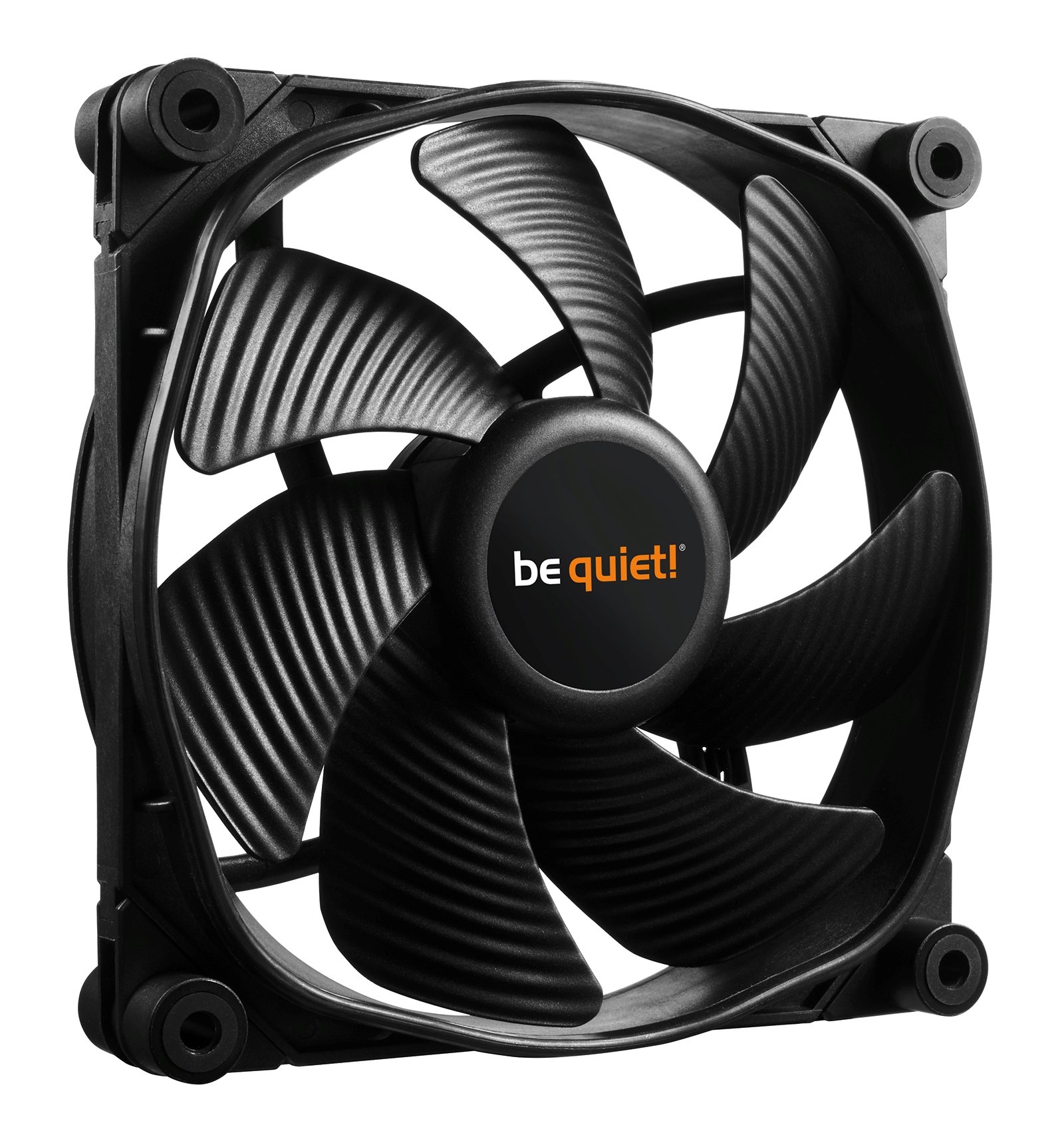

Be Quiet! Silent Wings 3 120mm

$15.99

be quiet! Silent Wings 3 120mm PWM stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.

Virtually inaudible operation at max. 16.4dB(A)
6-pole fan motor for less power consumption and vibration
Fluid-dynamic bearing enables super-long life span of 300,000h
Fan frame with funnel-shaped air inlets for extremely high air pressure
7 fan blades offer an optimized airflow
PWM controlled fan speed by the motherboard

Compare

Add to wishlist

11 People watching this product now!

SKU: BL066 Categories: Case Fans, Cooling & Fans, PC Hardware & Components

Description

General data

Model	Silent Wings 3 120mm PWM
Dimensions (mm)	120
Color option	Black
Lighting	–
Fan speed at 100% PWM / 12V (rpm)	1450
Noise level at 100% PWM / 12V (dB(A))	16.4
Airflow at 100% PWM / 12V (CFM / m3/h)	50.5 / 85.8
Air Pressure at 100% PWM / 12V (mm H2O)	1.79

Infographics

Mechanical specifications


Dimensions (L x W x H), (mm)
120 x 25 x 120

Weight incl. fixed cables (g)
137

Bearing technology
FDB

Motor technology
6-pole fan motor

Push pin fixing
✓

Screw fixing
✓



Cables / Connectors


Daisy-chain compatible
–

Lighting connector
–

Connector
4-pin PWM

Cable length (mm)
500

Cable sleeve
✓

Performance / Noise


Airflow at 100% PWM / 12V (CFM / m3/h)
50.5 / 85.8

Air Pressure at 100% PWM / 12V (mm H2O)
1.79

Noise level at 100% PWM / 12V (dB(A))
16.4

Lifespan (h / 25°C)
300,000

Zero RPM mode
–



Electrical specifications


Rated Voltage DC (V)
12

Operating Voltage DC (V)
5 – 13.2

Input current (A)
–

Safety current (A)
0.12

Input power (W)
1.44

Rated Current LED (A)
–

Accessories


3-pin to 4-pin 12V-connector
–

12V to 7V adapter
–

12V to 5V adapter
–

Screws
5

Push pins
5

hard plastic washer
5

Others
Rubber & hard plastic mountings
