General data

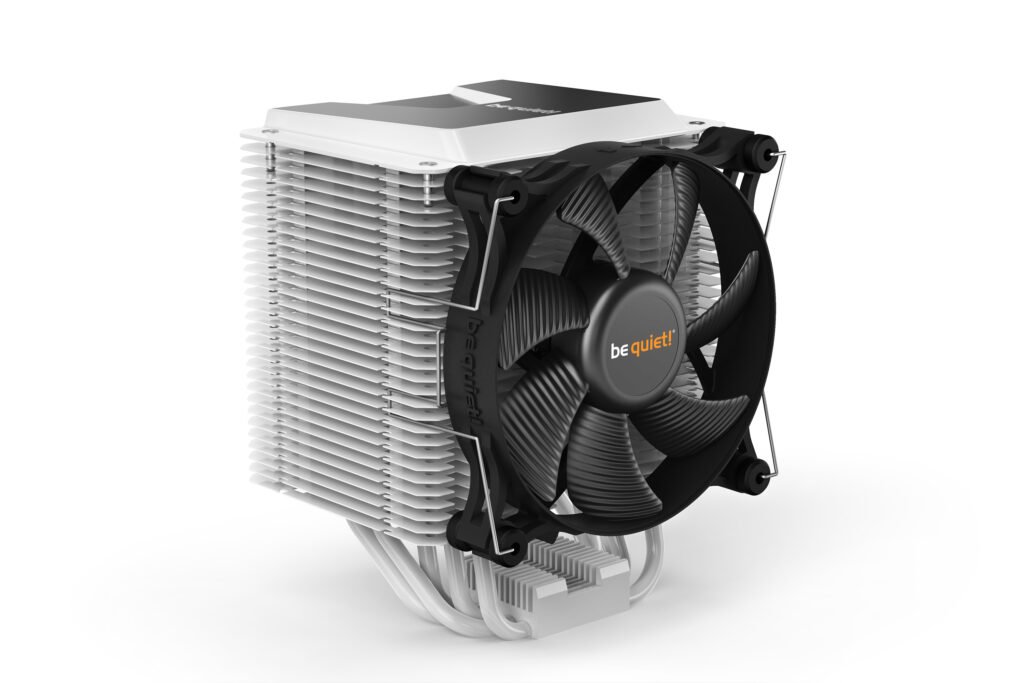

| Model | Shadow Rock 3 White |
| TDP (W) | 190 |
| Color option | White |
| Overall dimensions without mounting material (L x W x H), (mm) | 96 x 130 x 163 |
| Total weight (kg) | 0.71 |
| Socket compatibility Intel | 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.5 / 17.5 / 24.4 |
| Number of fans | 1 |
| Lighting connector | – |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 121 x 130 x 163 |
| Fin material | Aluminum |
| Surface treatment | Electrophoresis |
| Base material | Aluminum / Copper |
| CPU contact surface | Heat pipe direct touch |
| Heatpipe number / Diameter (mm) | 5 / 6 |
| Decoupled fan mounting | ✓ |
Fan specifications
| Fan model | Shadow Wings 2 120mm PWM high-speed |
| Fan dimensions (mm) | 120 x 120 x 25 |
| Speed @ 100% PWM (rpm) | 1600 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 49.2 / 83.6 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.01 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Connector | 4-pin PWM |
| Lighting connector | – |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 80,000 |
| Y-Cable | – |
Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | – |
| User manual languages | CN, DE, EN, ES, FR, PL, RU, TW |
